TRAY SEALING EQUIPMENT
Traysealer SC 200 TA
SC200TA machine is intended to reach higher production speed and consequently leads to higher packaging capacities. Its flexible tooling system allows for the die to be configured as a 1-track, 2-track or up to a 3-track setup, depending on tray size and production requirements. This versatility makes it an excellent choice for medium to large-scale businesses aiming to boost efficiency without compromising quality. Machine with single or double stations available.
CAPACITY
6-8
cycles/min
FILM WIDTH
490
mm, max
FILM ROLL DIAMETER
250
mm, max
CONTROL
10″
HMI
CAPACITY
6-8
cycles/min
FILM WIDTH
490
mm, max
FILM ROLL
DIAMETER
250
mm, max
CONTROL
10″
HMI
Safety system
-
-
- Safety system with safety slides in loading area and around cutting tools;
- Removable safety guards for die (perforated stainless steel);
- Magnetic switches stop the movement of the machine if the safety guards are lifted or moved;
- Falling fingers which form an access curtain are free to pivot allowing packs to pass through. But mechanically blocks access to moving machine parts if the operator tries to reach through from the other direction;
- Moving safety shield (from loading area side)
- EXTRA STOP button.
-
Pneumatic and vacuum system
-
-
- SMC vacuum valves;
- SMC pneumatical components;
- Cylinder for form lifting;
- Assembly of machine control valves;
- Safety valve for air pressure connection;
- Filter for compressed air;
- Valve system for sealing stations;
- Sealing valve with pressure regulator.
-
- Zebra ZD410 thermal label printer (only in combination with ACS)
- Inclined insert plate
- Service kit for standard maintenance
CAPACITY
6-8
cycles/min
FILM WIDTH
490
mm, max
FILM ROLL DIAMETER
250
mm, max
CONTROL
10″
HMI
CAPACITY
6-8
cycles/min
FILM WIDTH
490
mm, max
FILM ROLL
DIAMETER
250
mm, max
CONTROL
10″
HMI
Safety system
-
-
- Safety system with safety slides in loading area and around cutting tools;
- Removable safety guards for die (perforated stainless steel);
- Magnetic switches stop the movement of the machine if the safety guards are lifted or moved;
- Falling fingers which form an access curtain are free to pivot allowing packs to pass through. But mechanically blocks access to moving machine parts if the operator tries to reach through from the other direction;
- Moving safety shield (from loading area side)
- EXTRA STOP button.
-
Pneumatic and vacuum system
-
-
- SMC vacuum valves;
- SMC pneumatical components;
- Cylinder for form lifting;
- Assembly of machine control valves;
- Safety valve for air pressure connection;
- Filter for compressed air;
- Valve system for sealing stations;
- Sealing valve with pressure regulator.
-
- Zebra ZD410 thermal label printer (only in combination with ACS)
- Inclined insert plate
- Service kit for standard maintenance
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec quis massa condimentum, viverra tortor nec, sagittis neque. Nunc pharetra efficitur nibh, a pretium nibh viverra vitae.
Peter White
Store manager

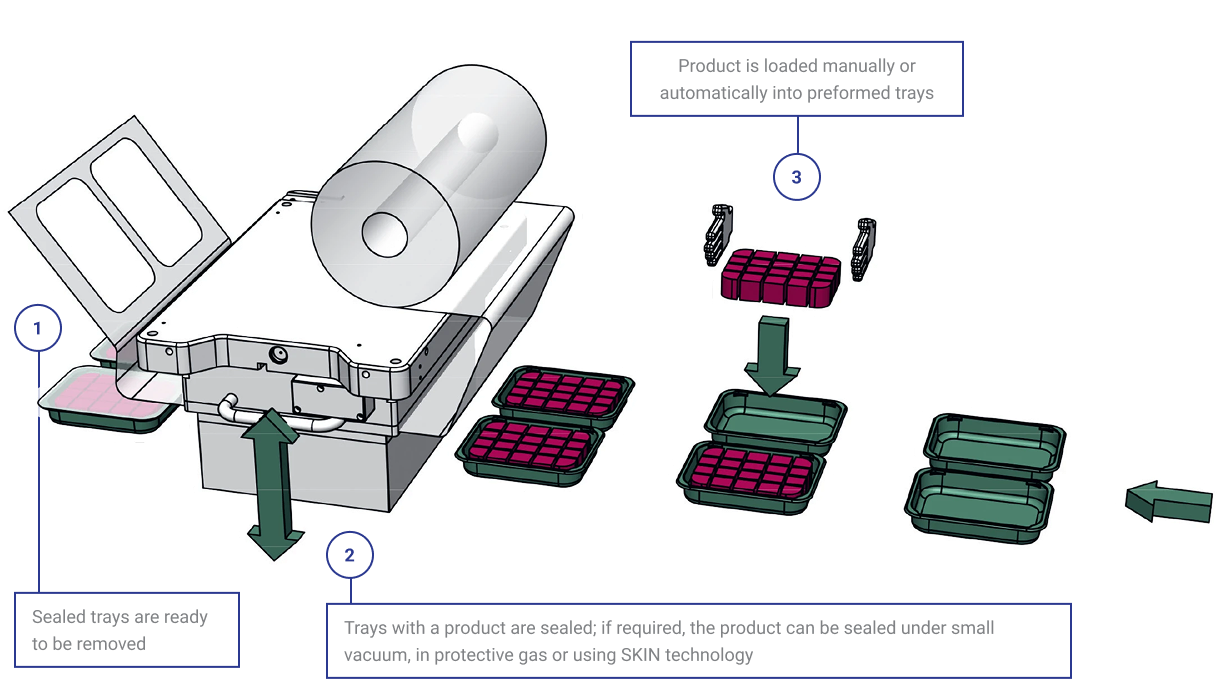

SC200TA PROCESS
Automatic traysealing is a production process in which a product is loaded
into a preformed tray, which is then transported by chain conveyor and
sealed with top film – all within a single, continuous production cycle.
Proven design
Our machines are built on years of experience.
Trusted parts
We use only top-brand components that are available worldwide.
Production boost
Multi–package cycle and easy film roll change and tension control.
Reasonably customized
Tailored solutions to customer's needs.
Extra safe
Emerigency shutdown, electronic safety checks with notifications on screen, total power lock-off switch for safe maintenance.
Simple-Smart
Smart features that optimize processes without complicating the machine: film depletion auto-stop, servo-electric variable speed, automatic lubrication, automatic cleaning, automatic washing, operation time tracking.
Packing all
Only sealing, vacuum, gas or skin packs, various package dimensions.
Easy-Brand
Make your brand pop, easy setup for printed film.
Auto-Control
Customized, fully automated operation.
Clean & hygienic
Hygienic materials and user-friendly design for easy cleaning.
Accu-Temp
Precise temperature control for heating and sealing from touch screen.
Recipe memory
Save hundreds of settings.
Electrical
Vacuum Pump
PLC, HMI and DRIVE
Motion
OPTIONS
- Photo cell for printed film
- Liquid separator in the vacuum line
- Particle filter for vacuum pump
- MAP with O2>21% (oxygen safe vacuum pumps)
- Integrated gas flash system for two different gas mixtures for easy approaching and selection from HMI
- Outfeed belt conveyor
- Synchronisation with additional equipment: automatic tray denester, dosing system, printer, labelling system, etc.
- Autonomous water cooling
- Trolley for tools replacement and storage
PARAMETERS
- Machine weight: 850 kg / 1340* kg
- Machine dimensions: 2055 x 1122 x 1790 mm, 3400 x 1122 x 1790* mm
- Electrical parameters: 400V-3P-50Hz, 220V-3P-60Hz
- Compressed air: 6 - 7 bar
- Protective gas: 2 - 6 bar
*Double traysealing machine.
FORMAT LAYOUTS
AND TRAY
DIMENSIONS
- Tray depth: up to 90 mm
- Tray depth for SKIN: up to 30 mm
- Product height for SKIN without protruding: up to 25 mm
- Product height for SKIN with protruding: up to 50 mm
- Product protrusion: up to 30 mm
390 x 273 mm
180 x 273 mm
110 x 273 mm
*Other formats and tray sizes should be discussed individually.
