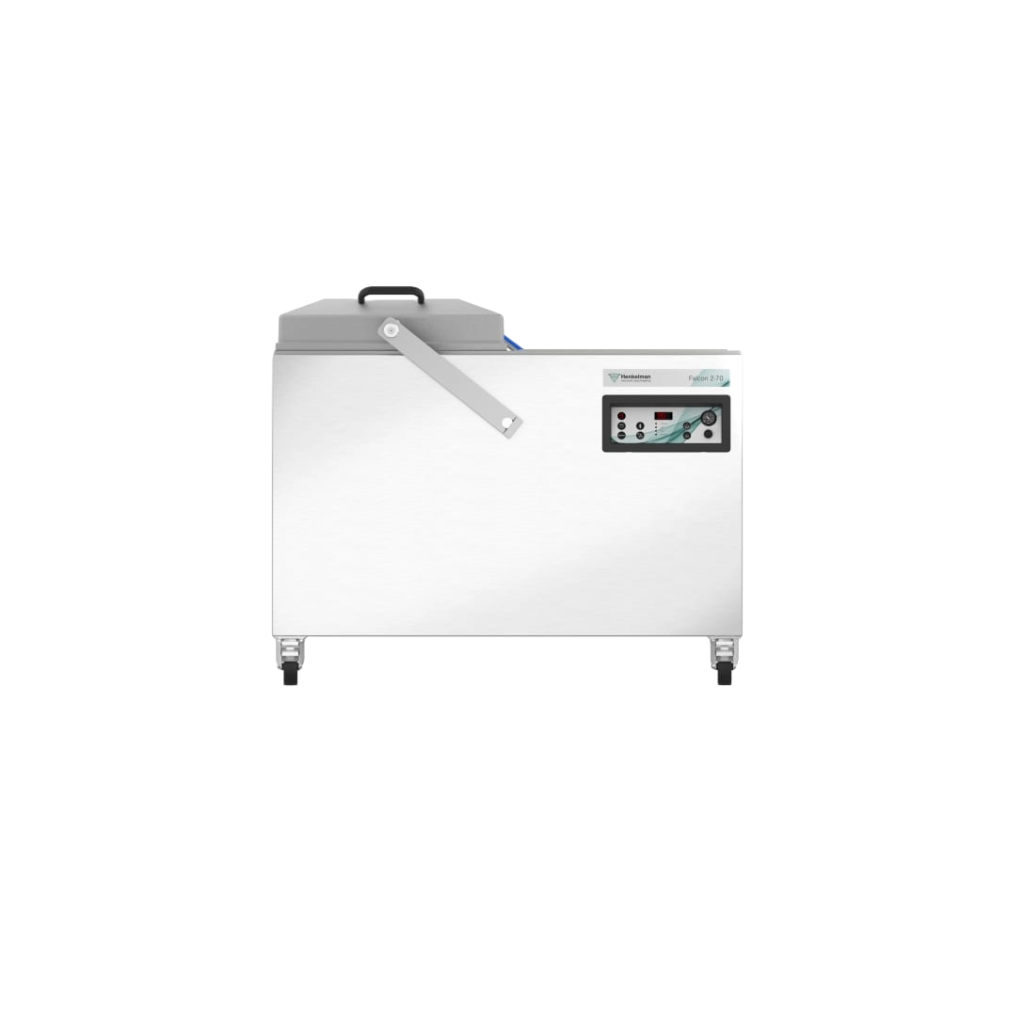

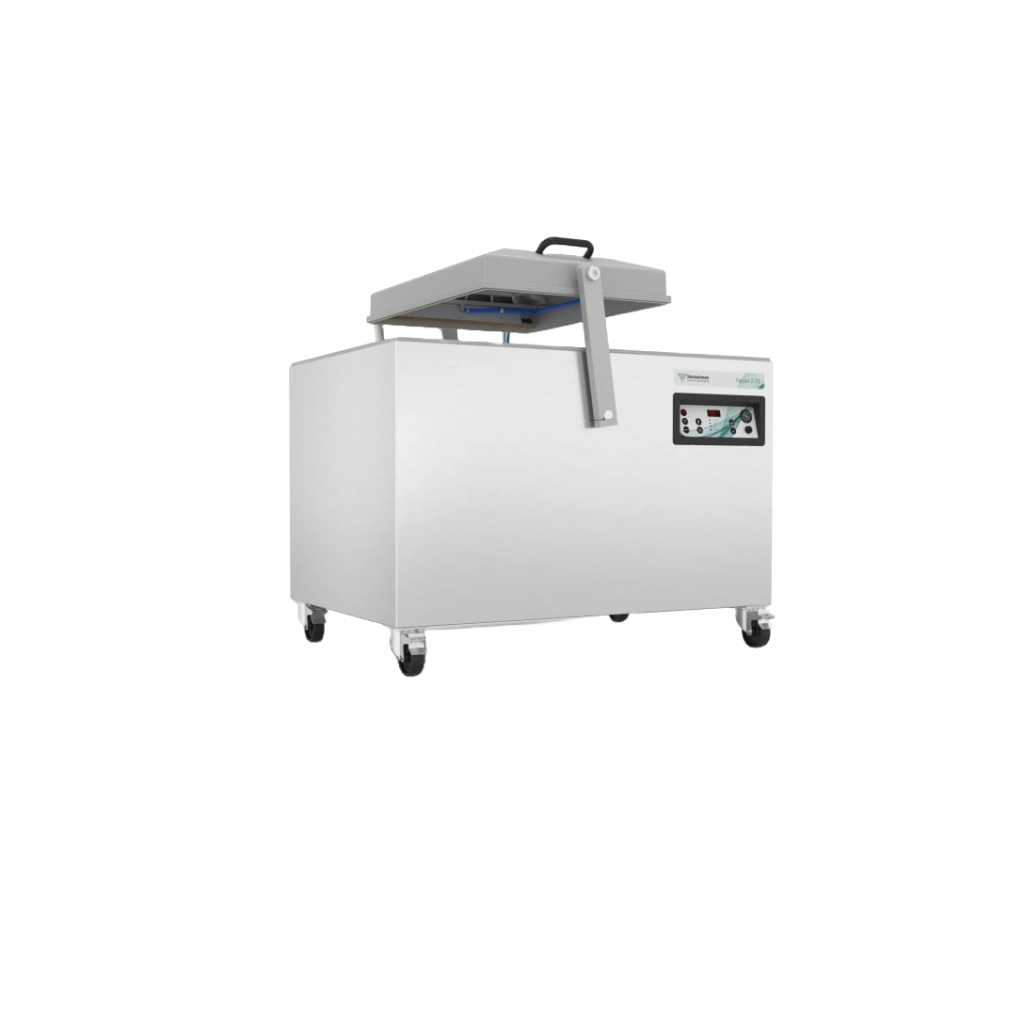

Falcon 2-70
• Dual seal bars: 2×545 mm
• Pump capacity: 100 m³/h
• Machine cycle: 13–27 seconds
• Power consumption: 2.3–3.4 kWh
• Total machine weight: 319 kg
• Includes 8 insert plates for faster cycles and optimal product alignment
• Standard double seal system; optional cut-off and wide seal available

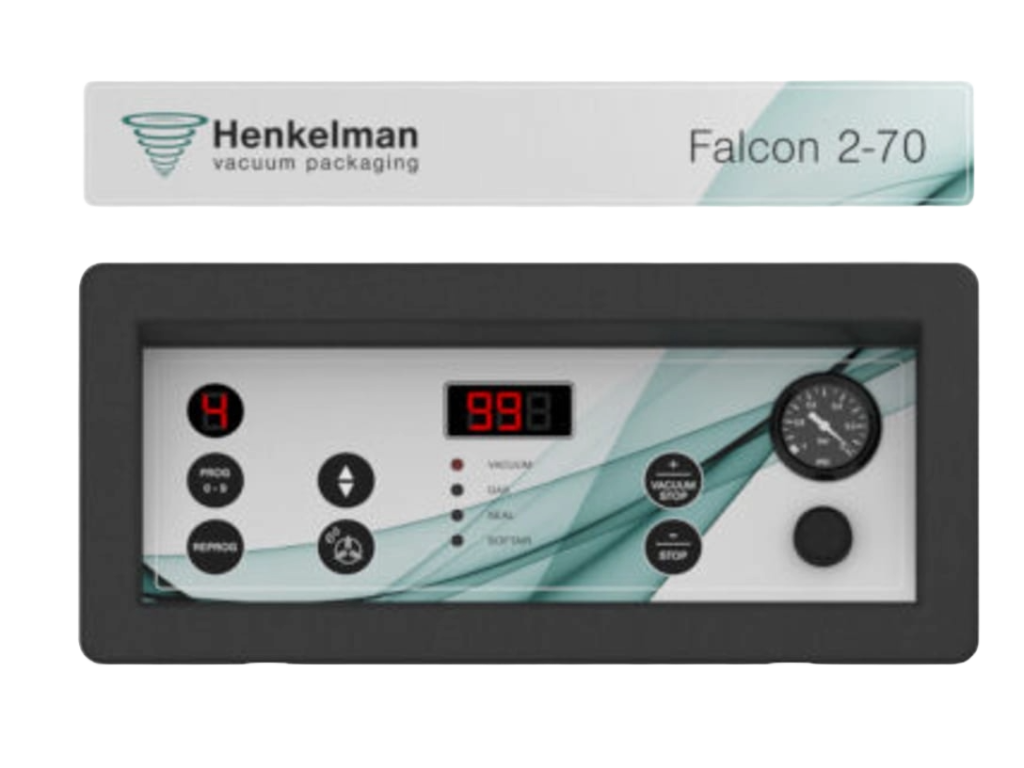

• Operating system with 10-program memory for personalized vacuum settings
• Manual time control for precise vacuum duration
• Red meat function to prevent air bubbles and preserve shelf life
• Automatic service report triggers after preset cycle count
• Double chamber design for high-volume, continuous operation
• Chamber dimensions (L x W x H): 700 x 550 x 235 mm
• Machine dimensions (L x W x H): 1020 x 1260 x 1185 mm
• 2 Seal bars (front-back)
• Sensor Control
• Gas Flush
• Liquid Control
• Soft Air
• Bi-Active Sealing System
• Heavy Duty Sealing Bars
• Inclined insert plate
• Thermal label printer
• Maintenance kit (Floor-standing model)
• Dual seal bars: 2×545 mm
• Pump capacity: 100 m³/h
• Machine cycle: 13–27 seconds
• Power consumption: 2.3–3.4 kWh
• Total machine weight: 319 kg
• Includes 8 insert plates for faster cycles and optimal product alignment
• Standard double seal system; optional cut-off and wide seal available
• Operating system with 10-program memory for personalized vacuum settings
• Manual time control for precise vacuum duration
• Red meat function to prevent air bubbles and preserve shelf life
• Automatic service report triggers after preset cycle count
• Double chamber design for high-volume, continuous operation
• Chamber dimensions (L x W x H): 700 x 550 x 235 mm
• Machine dimensions (L x W x H): 1020 x 1260 x 1185 mm
• 2 Seal bars (front-back)
• Sensor Control
• Gas Flush
• Liquid Control
• Soft Air
• Bi-Active Sealing System
• Heavy Duty Sealing Bars
• Inclined insert plate
• Thermal label printer
• Maintenance kit (Floor-standing model)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec quis massa condimentum, viverra tortor nec, sagittis neque. Nunc pharetra efficitur nibh, a pretium nibh viverra vitae.
Peter White
Store manager
SC200TA PROCESS
Multi–package cycle and easy film roll change and tension control.
Emerigency shutdown, electronic safety checks with notifications on screen, total power lock-off switch for safe maintenance.
Only sealing, vacuum, gas or skin packs, various package dimensions.
Precise temperature control for heating and sealing from touch screen.
OPTIONS
- Photo cell for printed film
- Liquid separator in the vacuum line
- Particle filter for vacuum pump
- MAP with O2>21% (oxygen safe vacuum pumps)
- Integrated gas flash system for two different gas mixtures for easy approaching and selection from HMI
- Outfeed belt conveyor
- Synchronisation with additional equipment: automatic tray denester, dosing system, printer, labelling system, etc.
- Autonomous water cooling
- Trolley for tools replacement and storage
PARAMETERS
- Machine weight: 850 kg / 1340* kg
- Machine dimensions: 2055 x 1122 x 1790 mm, 3400 x 1122 x 1790* mm
- Electrical parameters: 400V-3P-50Hz, 220V-3P-60Hz
- Compressed air: 6 - 7 bar
- Protective gas: 2 - 6 bar
FORMAT LAYOUTS
AND TRAY
DIMENSIONS
- Tray depth: up to 90 mm
- Tray depth for SKIN: up to 30 mm
- Product height for SKIN without protruding: up to 25 mm
- Product height for SKIN with protruding: up to 50 mm
- Product protrusion: up to 30 mm
