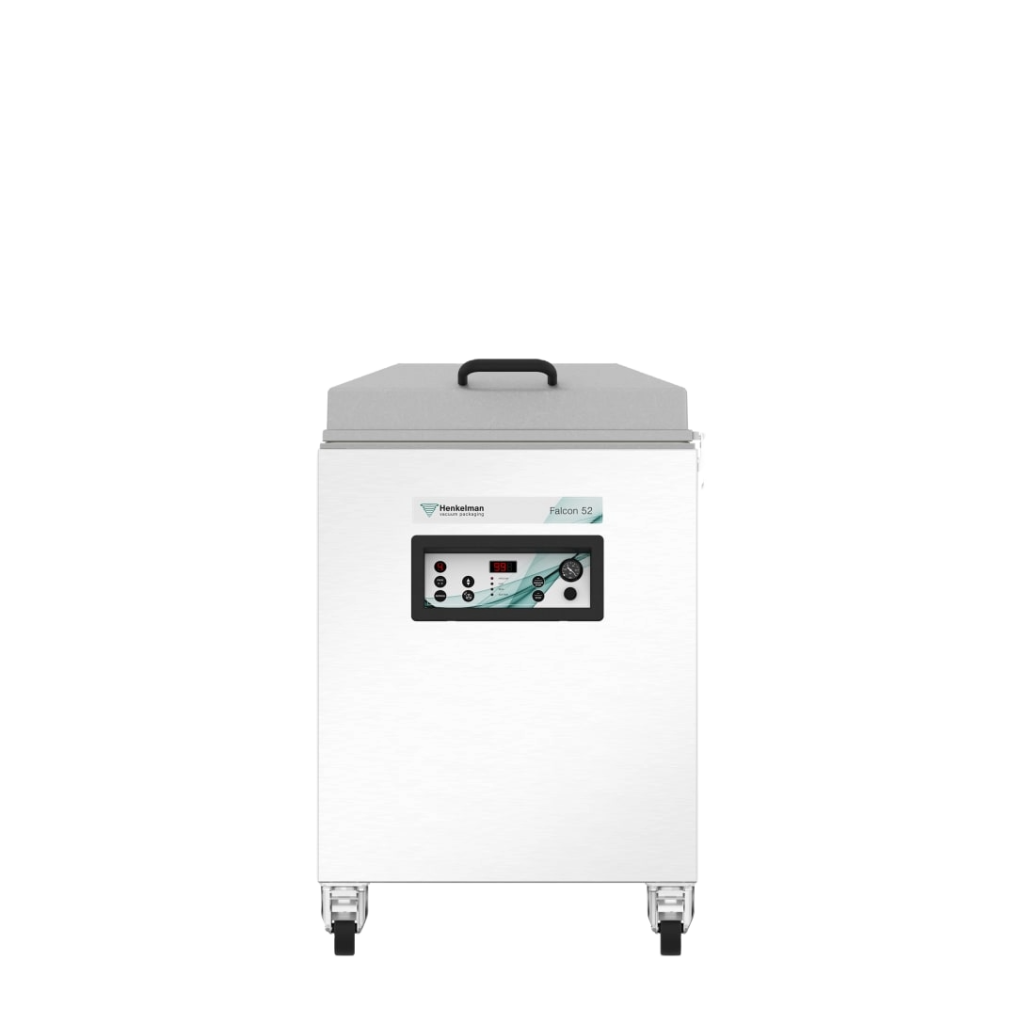

Falcon 2-52
• Dual seal bars: 2×505 mm
• Pump capacity: 63 m³/h
• Machine cycle: 12–27 seconds
• Power consumption: 1.8–2.4 kWh
• Total machine weight: 163 kg
• Includes 4 insert plates for faster cycle and optimal product alignment
• Standard double seal system; cut-off and wide seal options available

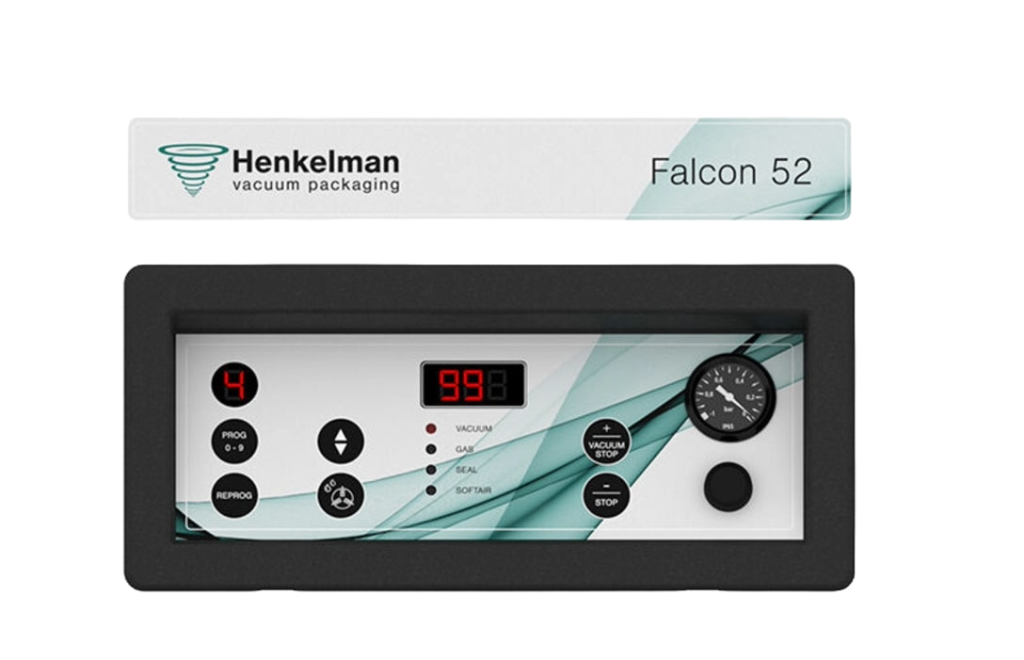

• Operating system with 10-program memory for personalized settings
• Manual time control for precise vacuuming adjustment
• Red meat function prevents degassing and improves shelf life
• Automatic service report triggers after defined cycle threshold

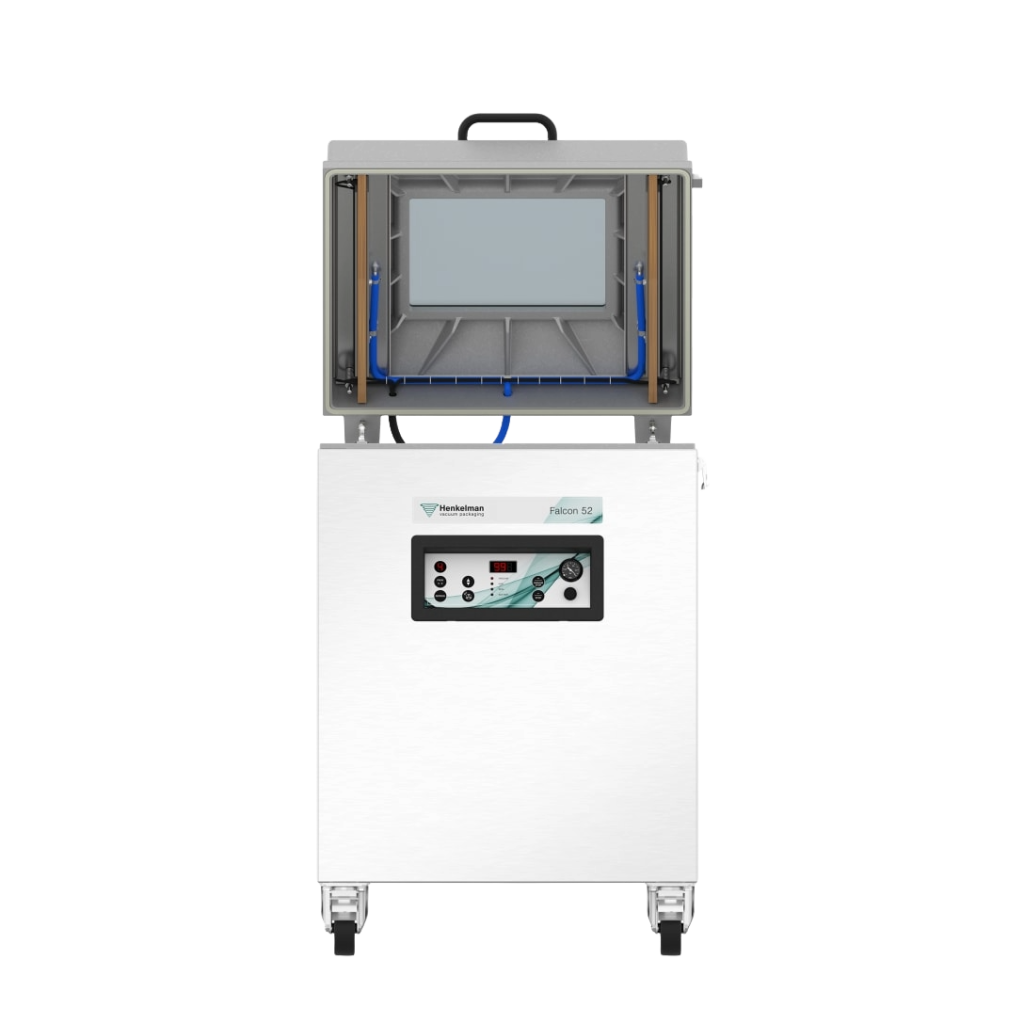

• Viewing window for real-time monitoring of the packaging process
• Chamber dimensions (L x W x H): 520 x 500 x 235 mm
• Machine dimensions (L x W x H): 695 x 682 x 1060 mm
• 2 Seal bars (left-right)
• Dual seal bars: 2×505 mm
• Pump capacity: 63 m³/h
• Machine cycle: 12–27 seconds
• Power consumption: 1.8–2.4 kWh
• Total machine weight: 163 kg
• Includes 4 insert plates for faster cycle and optimal product alignment
• Standard double seal system; cut-off and wide seal options available
• Operating system with 10-program memory for personalized settings
• Manual time control for precise vacuuming adjustment
• Red meat function prevents degassing and improves shelf life
• Automatic service report triggers after defined cycle threshold
• Viewing window for real-time monitoring of the packaging process
• Chamber dimensions (L x W x H): 520 x 500 x 235 mm
• Machine dimensions (L x W x H): 695 x 682 x 1060 mm
• 2 Seal bars (left-right)
• Sensor Control
• Gas Flush
• Liquid Control
• Soft Air
• Bi-Active Sealing System
• ESD
• Heavy Duty Sealing Bars
• Inclined insert plate
• Thermal label printer
• Maintenance kit (Floor-standing model)
OPTIONS
- Photo cell for printed film
- Liquid separator in the vacuum line
- Particle filter for vacuum pump
- MAP with O2>21% (oxygen safe vacuum pumps)
- Integrated gas flash system for two different gas mixtures for easy approaching and selection from HMI
- Outfeed belt conveyor
- Synchronisation with additional equipment: automatic tray denester, dosing system, printer, labelling system, etc.
- Autonomous water cooling
- Trolley for tools replacement and storage
PARAMETERS
- Machine weight: 850 kg / 1340* kg
- Machine dimensions: 2055 x 1122 x 1790 mm, 3400 x 1122 x 1790* mm
- Electrical parameters: 400V-3P-50Hz, 220V-3P-60Hz
- Compressed air: 6 - 7 bar
- Protective gas: 2 - 6 bar
FORMAT LAYOUTS
AND TRAY
DIMENSIONS
- Tray depth: up to 90 mm
- Tray depth for SKIN: up to 30 mm
- Product height for SKIN without protruding: up to 25 mm
- Product height for SKIN with protruding: up to 50 mm
- Product protrusion: up to 30 mm
