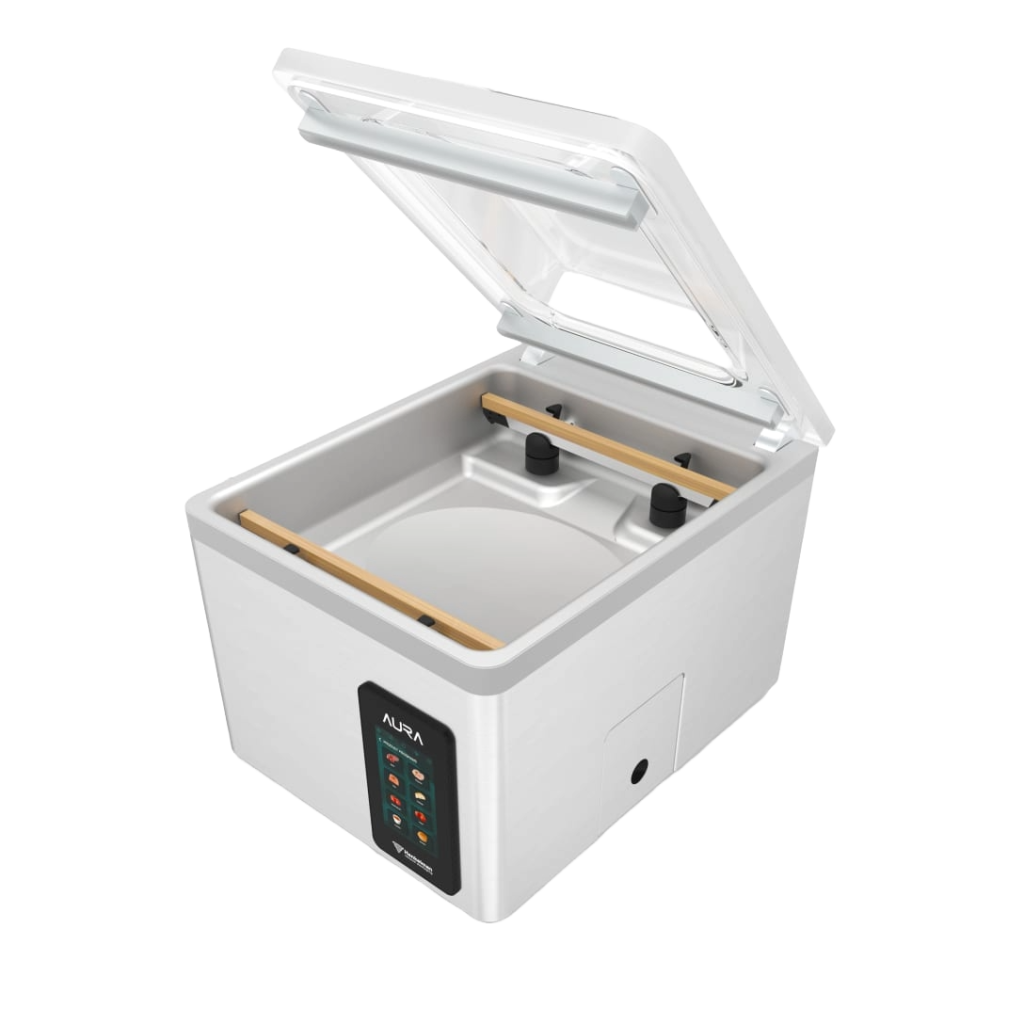

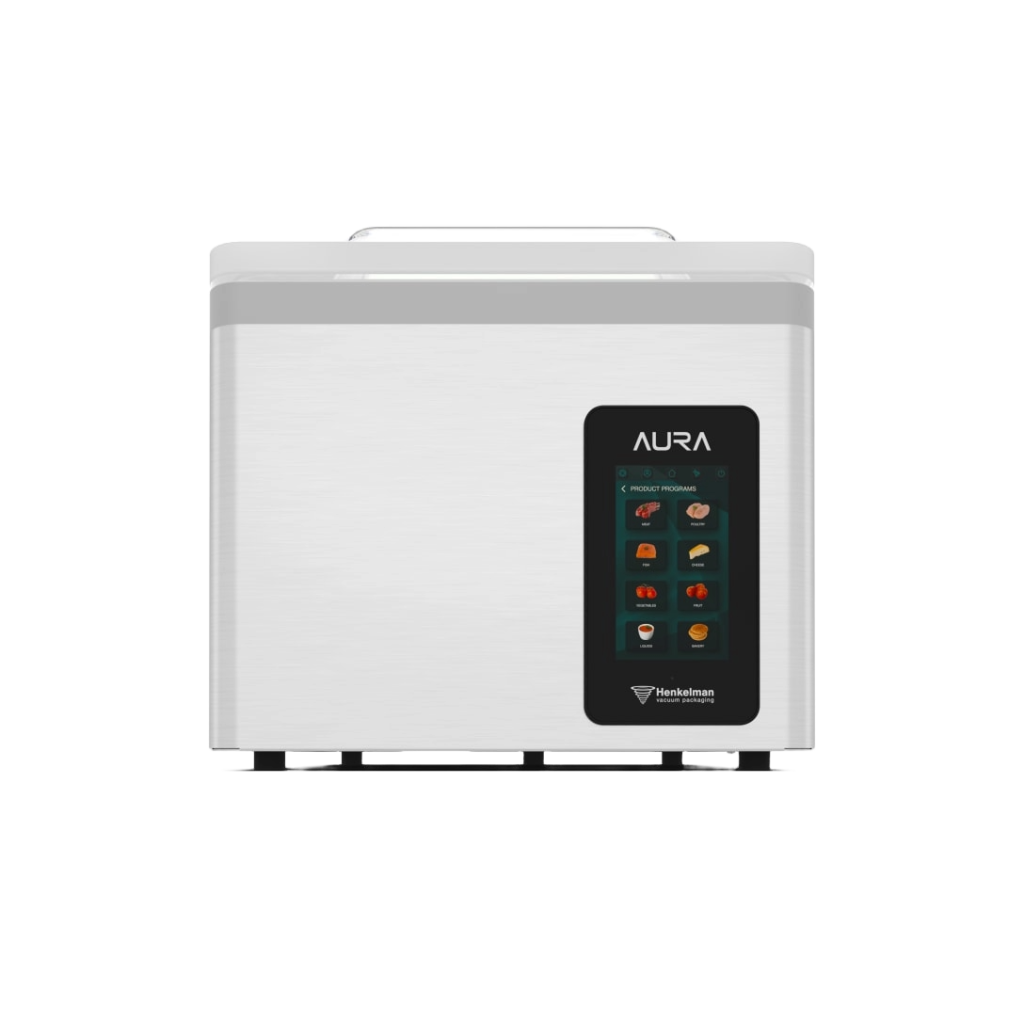

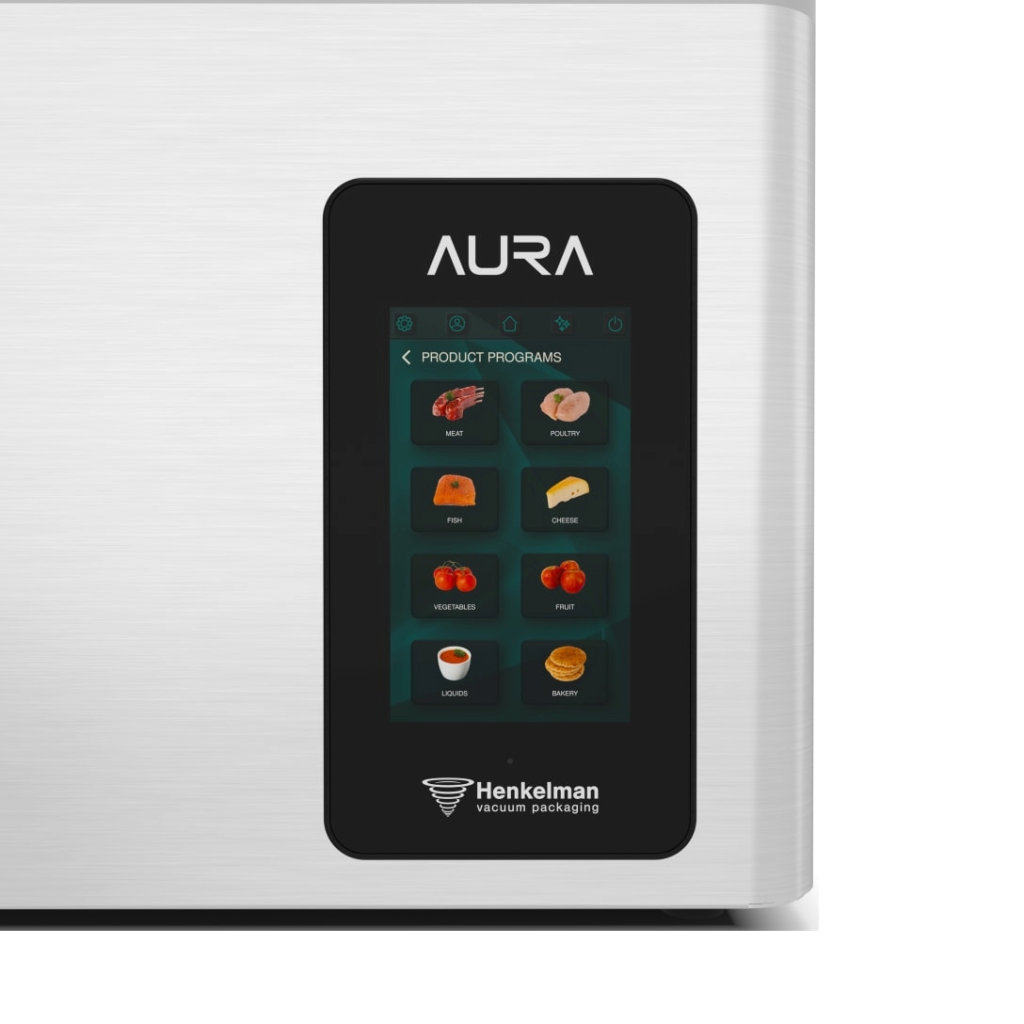

Aura 42XL
• Seal bar: 410 mm
• Pump capacity: 16 m³/h
• Machine cycle: 14–45 seconds
• Power consumption: 0.8-1.0 kWh
• Total machine weight: 68 kg
• Includes 3 insert plates for product positioning and faster cycle times
• Soft air for safe vacuum packing of sharp or delicate products
• Sensor control with automatic vacuum stop at preset pressure
• Red meat function prevents degassing and extends product shelf life
• Chamber dimensions (L x W x H): 460 x 420 x 180 mm
• Machine dimensions (L x W x H): 613 x 491 x 494 mm
• Single Seal Bar
• Two Seal Bar
• Sensor Control
• Gas Flush
• Soft Air
• Standard double seal (two parallel wires for extra security)
• Optional: Cut-off or wide seal available on request
• Inclined insert plate
• Universal trolley (table model)
• External adapter
• Maintenance kit (Floor-standing model)
• Thermal label printer
• Seal bar: 410 mm
• Pump capacity: 16 m³/h
• Machine cycle: 14–45 seconds
• Power consumption: 0.8-1.0 kWh
• Total machine weight: 68 kg
• Includes 3 insert plates for product positioning and faster cycle times
• Soft air for safe vacuum packing of sharp or delicate products
• Sensor control with automatic vacuum stop at preset pressure
• Red meat function prevents degassing and extends product shelf life
• Chamber dimensions (L x W x H): 460 x 420 x 180 mm
• Machine dimensions (L x W x H): 613 x 491 x 494 mm
• Single Seal Bar
• Two Seal Bar
• Sensor Control
• Gas Flush
• Soft Air
• Standard double seal (two parallel wires for extra security)
• Optional: Cut-off or wide seal available on request
• Inclined insert plate
• Universal trolley (table model)
• External adapter
• Maintenance kit (Floor-standing model)
• Thermal label printer
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec quis massa condimentum, viverra tortor nec, sagittis neque. Nunc pharetra efficitur nibh, a pretium nibh viverra vitae.
Peter White
Store manager
SC200TA PROCESS
Multi–package cycle and easy film roll change and tension control.
Emerigency shutdown, electronic safety checks with notifications on screen, total power lock-off switch for safe maintenance.
Only sealing, vacuum, gas or skin packs, various package dimensions.
Precise temperature control for heating and sealing from touch screen.
OPTIONS
- Photo cell for printed film
- Liquid separator in the vacuum line
- Particle filter for vacuum pump
- MAP with O2>21% (oxygen safe vacuum pumps)
- Integrated gas flash system for two different gas mixtures for easy approaching and selection from HMI
- Outfeed belt conveyor
- Synchronisation with additional equipment: automatic tray denester, dosing system, printer, labelling system, etc.
- Autonomous water cooling
- Trolley for tools replacement and storage
PARAMETERS
- Machine weight: 850 kg / 1340* kg
- Machine dimensions: 2055 x 1122 x 1790 mm, 3400 x 1122 x 1790* mm
- Electrical parameters: 400V-3P-50Hz, 220V-3P-60Hz
- Compressed air: 6 - 7 bar
- Protective gas: 2 - 6 bar
FORMAT LAYOUTS
AND TRAY
DIMENSIONS
- Tray depth: up to 90 mm
- Tray depth for SKIN: up to 30 mm
- Product height for SKIN without protruding: up to 25 mm
- Product height for SKIN with protruding: up to 50 mm
- Product protrusion: up to 30 mm
