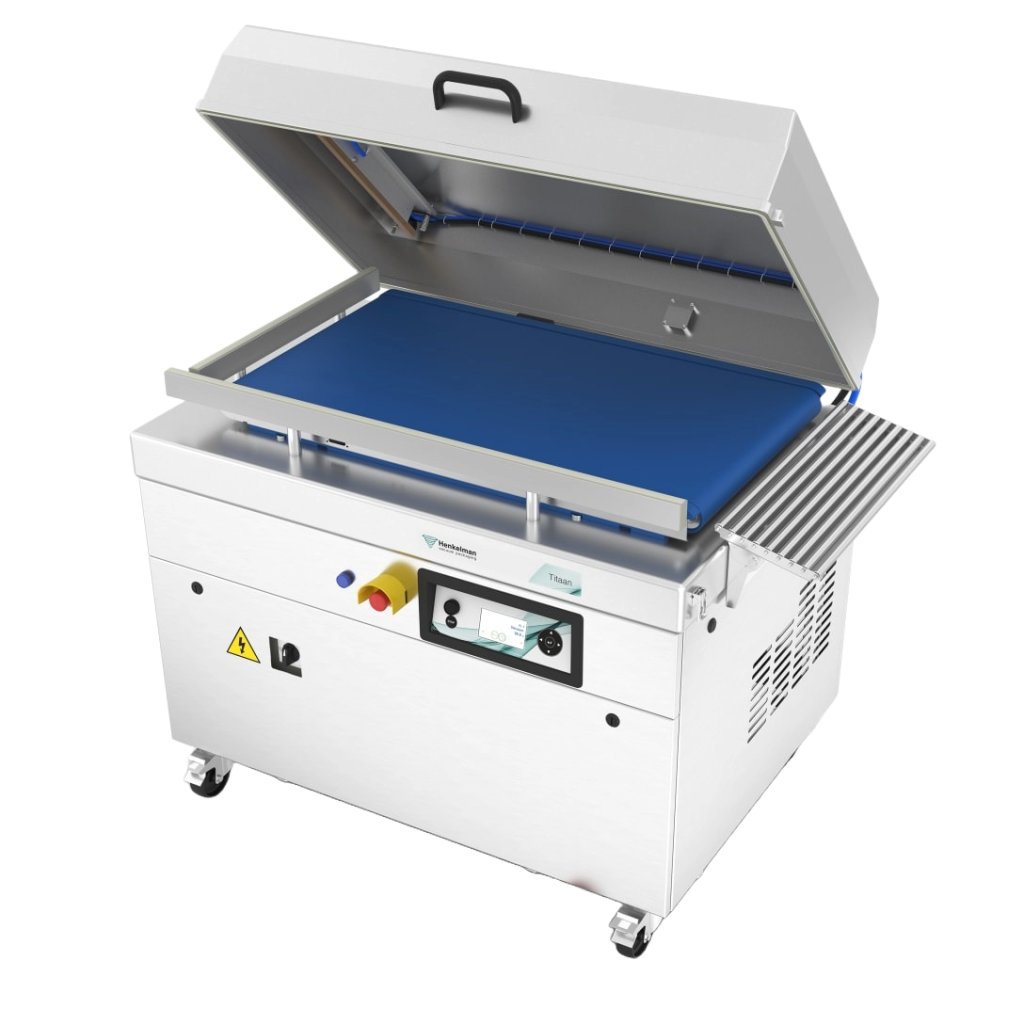

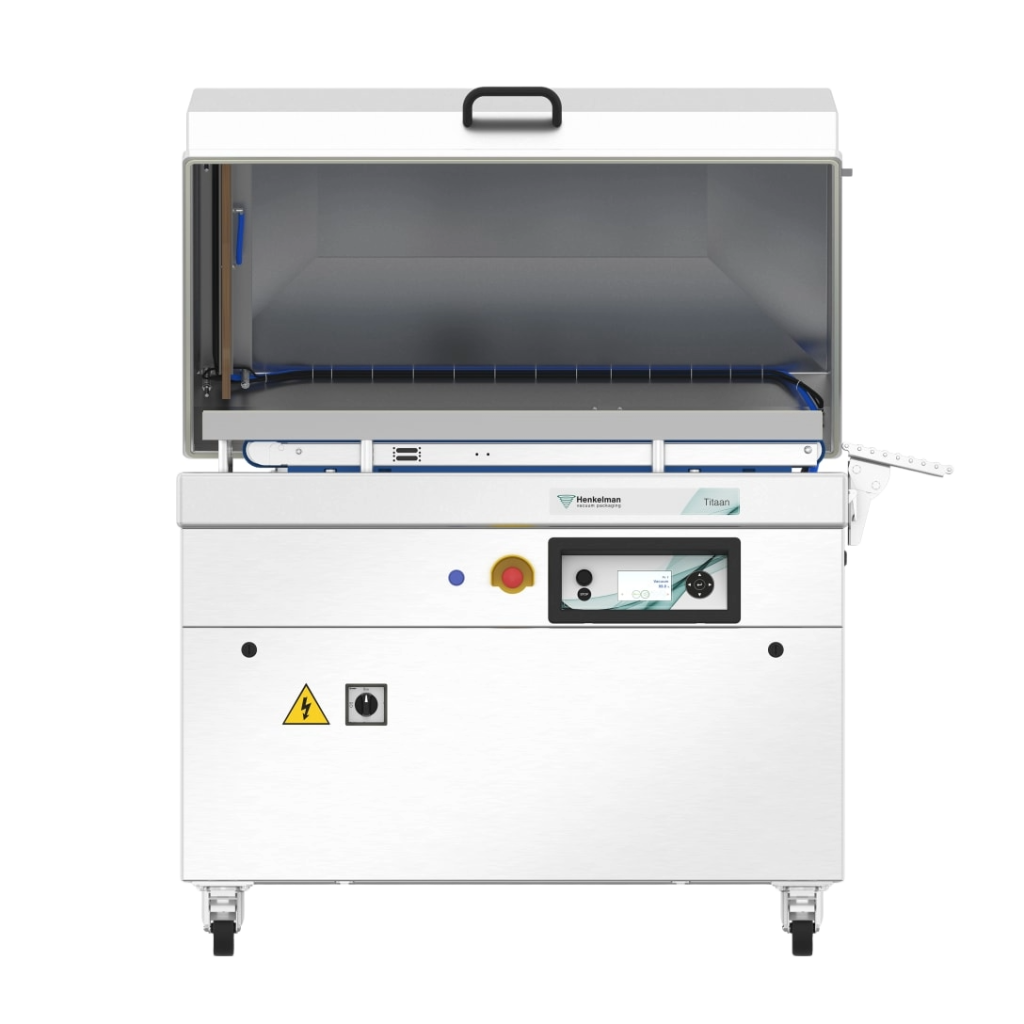

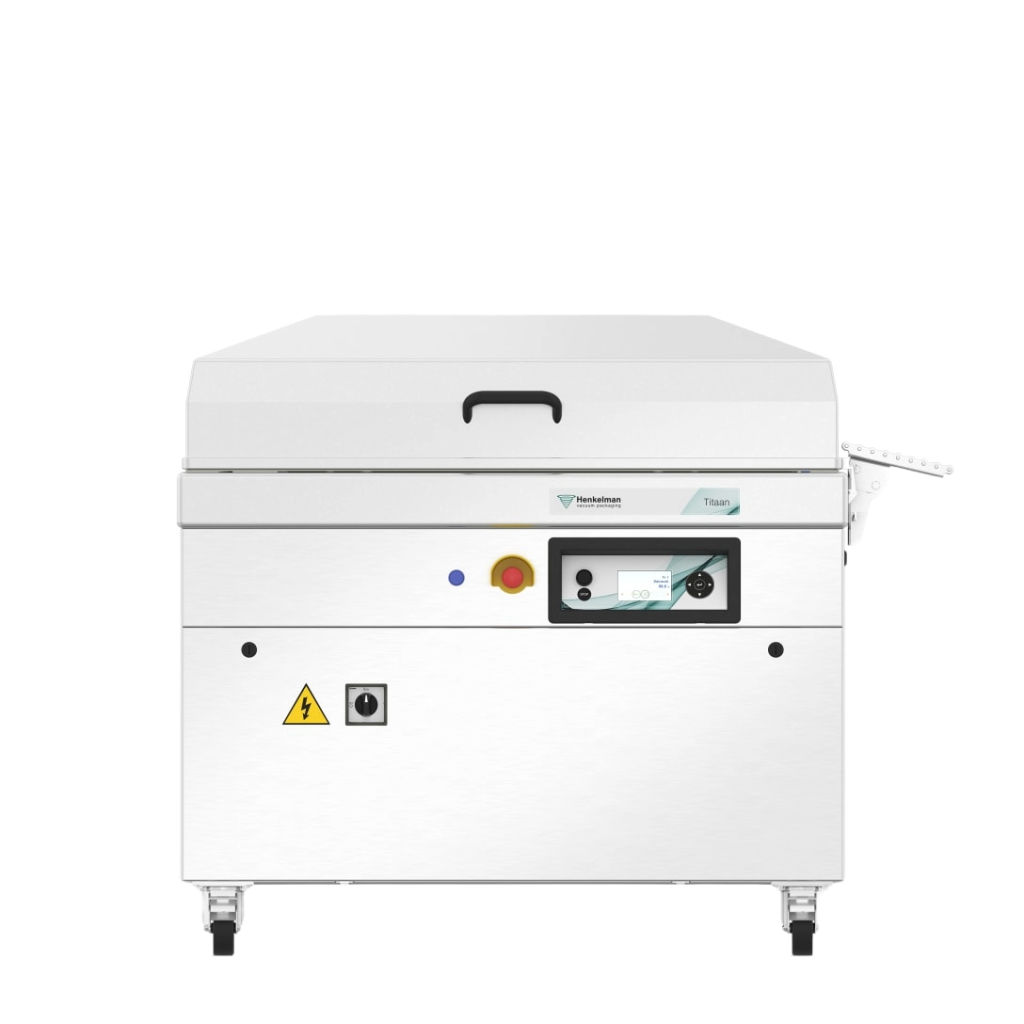

Titaan 110
• Dual seal bars: 1×1090 mm and 1×620 mm
• Pump capacity: 160 m³/h
• Machine cycle: 15–33 seconds
• Power consumption: 4.0–4.5 kWh
• Total machine weight: 511 kg
• Includes 1 insert plate for faster cycle and product positioning
• Advanced Control System (ACS) with 20 programmable settings
• Internal outfeed conveyor for automatic product discharge
• Sensor control with auto-stop at target vacuum pressure
• Flat stainless steel work surface for industrial durability
• Closed stainless steel lid for extended lifespan
• Automatic lid for ergonomic use and improved output
• Soft air for safe vacuum sealing of sharp or delicate items
• Double chamber for continuous, high-volume operation
• Chamber dimensions (L x W x H): 620 x 1050 x 190 mm
• Machine dimensions (L x W x H): 947 x 1200 x 1150 mm
• 2 Seal bars (left-front)
• Liquid control
• Sensor Conrol
• Soft Air
• Bi-Active Sealing System
• Automatic Lid
• Conveyor Belt
• External Pump preparation
• Heavy Duty Sealing Bars
• Thermal label printer
• Maintenance kit (Floor-standing model)
• Dual seal bars: 1×1090 mm and 1×620 mm
• Pump capacity: 160 m³/h
• Machine cycle: 15–33 seconds
• Power consumption: 4.0–4.5 kWh
• Total machine weight: 511 kg
• Includes 1 insert plate for faster cycle and product positioning
• Advanced Control System (ACS) with 20 programmable settings
• Internal outfeed conveyor for automatic product discharge
• Sensor control with auto-stop at target vacuum pressure
• Flat stainless steel work surface for industrial durability
• Closed stainless steel lid for extended lifespan
• Automatic lid for ergonomic use and improved output
• Soft air for safe vacuum sealing of sharp or delicate items
• Double chamber for continuous, high-volume operation
• Chamber dimensions (L x W x H): 620 x 1050 x 190 mm
• Machine dimensions (L x W x H): 947 x 1200 x 1150 mm
• 2 Seal bars (left-front)
• Liquid control
• Sensor Conrol
• Soft Air
• Bi-Active Sealing System
• Automatic Lid
• Conveyor Belt
• External Pump preparation
• Heavy Duty Sealing Bars
• Thermal label printer
• Maintenance kit (Floor-standing model)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec quis massa condimentum, viverra tortor nec, sagittis neque. Nunc pharetra efficitur nibh, a pretium nibh viverra vitae.
Peter White
Store manager
SC200TA PROCESS
Multi–package cycle and easy film roll change and tension control.
Emerigency shutdown, electronic safety checks with notifications on screen, total power lock-off switch for safe maintenance.
Only sealing, vacuum, gas or skin packs, various package dimensions.
Precise temperature control for heating and sealing from touch screen.
OPTIONS
- Photo cell for printed film
- Liquid separator in the vacuum line
- Particle filter for vacuum pump
- MAP with O2>21% (oxygen safe vacuum pumps)
- Integrated gas flash system for two different gas mixtures for easy approaching and selection from HMI
- Outfeed belt conveyor
- Synchronisation with additional equipment: automatic tray denester, dosing system, printer, labelling system, etc.
- Autonomous water cooling
- Trolley for tools replacement and storage
PARAMETERS
- Machine weight: 850 kg / 1340* kg
- Machine dimensions: 2055 x 1122 x 1790 mm, 3400 x 1122 x 1790* mm
- Electrical parameters: 400V-3P-50Hz, 220V-3P-60Hz
- Compressed air: 6 - 7 bar
- Protective gas: 2 - 6 bar
FORMAT LAYOUTS
AND TRAY
DIMENSIONS
- Tray depth: up to 90 mm
- Tray depth for SKIN: up to 30 mm
- Product height for SKIN without protruding: up to 25 mm
- Product height for SKIN with protruding: up to 50 mm
- Product protrusion: up to 30 mm
